Products

Resistance Spot Welder, Projection Welder, Seam Welder, Flash Butt
Welders, Three Phase Welders and Capacitor Discharge Welders

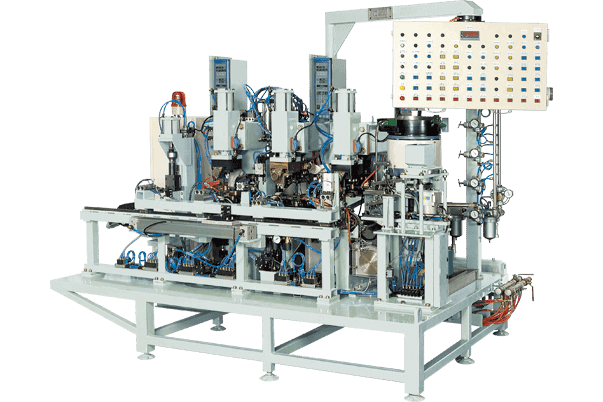

Automated Projection Welder

Fully Automated welding machines are available upon request. Refer to Custom Engineering section.
Part loader such as magazine stack, bowl feeders or trays feeder are available.
Integrate automated welder with other automated machines can be discussed

Depends on part, cycle time can be reduced to as minimal as 2 seconds/pc with no operators.
Pick and Place, Scara or Robotics integrated to meet customer needs.
Weld Data acquisition including weld force, weld pressure, weld penetration, weld current, weld time to water flow and water temperature

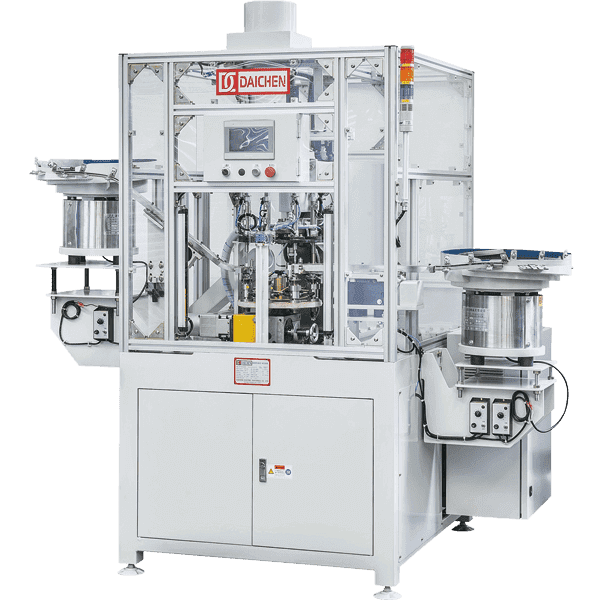

Projection Welding Machine

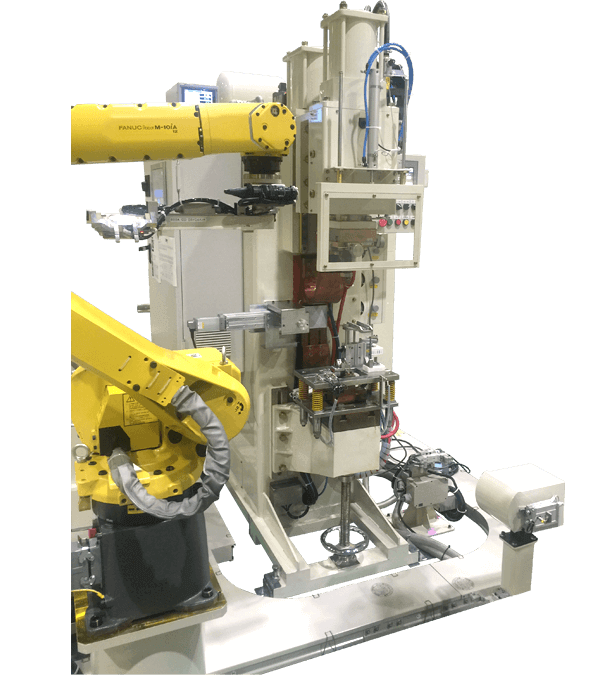

Robotic Assisted Automation

Robotics replace operator for part loading and unloading.
Custom made welding machine suitable for integration with robotic system as an option
Weld Data acquisition including weld force, weld pressure, weld penetration, weld current, weld time to water flow and water temperature

Specification

Robotic Assisted Automation

Inquire

Added to cart

DSA-100~200-NUT-8
DDIA-100~250-NUT-8

Current passing through flat electrode to join the Predetermined points on the weld part with the parent material.Learn More

Single Phase ACLearn More

Three Phase DC Inverter (MFDC)Learn More

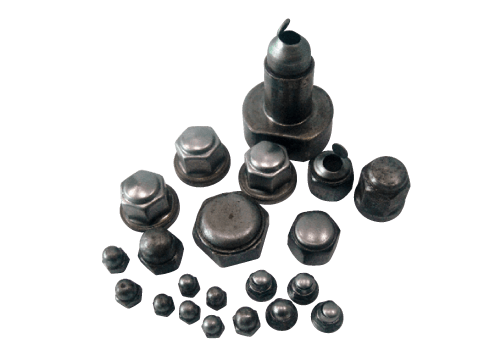

Cap Nuts

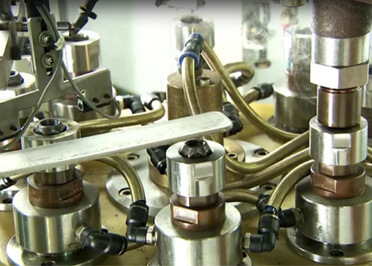

Automated Projection Welding Machine

Welding caps to the nuts to form a cap nut
The new Cap Nuts Welding machine occupies much smaller space
Refer to the specification table for the nut size and its recommended machine capacity.

Full Movie Play

Specification

Compare

Specification

Model	DDIA-100PJ-8-NUT	DDIA-150PJ-8-NUT	DDIA-200PJ-8-NUT	DDIA-250PJ-8-NUT
Capacity	100kVA	150kVA	200kVA	250kVA
Input Phase	Three Phase
Input Voltage	380V or 415V or 440V, 3 Phase AC
Power Conversion	Three Phase DC Inverter
Weldable Cap Nut Size	M4~M6	M6~M10	M12~M16	M16 above

M4~M6

M6~M10

M12~M16

M16 or Above

Inquire

Added to cart

DSA-100-SRW

DDIA-180-SRW

Current passing through flat electrode to join the Predetermined points on the weld part with the parent material.Learn More

Single Phase ACLearn More

Tube & End Fitting

Automated Projection Welding Machine

This machine projection welds A-flats or screws to the end of the gas spring.
This process proceeds after gas filling & welding.
Below are the machines for the end fitting to tube welding process.
1) Manual Operation - Economy Model
2) Manual Operation - Deluxe Model
3) Fully Automated Operation - Fully Automatic

Specification

Compare

Specification

Model	DSA-SRW	DDIA-SRW
Operation	Fully Automatic Model
Productivity	5~7 Seconds / PC, 4100~5800 PCS /per day
Weld Strength	Comparably Lower	Comparably Higher
Power Conversion	Single Phase AC 0% Energy Saving Imbalance Phase	Three Phase DC Inverter 70% Energy Saving Balance Phase

Fully Automated

DSA-SRW

DDIA-SRW

Inquire

Added to cart

DCPS-75-Y-AUT

Current passing through flat electrode to join the Predetermined points on the weld part with the parent material.Learn More

Single Phase ACLearn More

Three Phase Rectifier-DC PowerLearn More

Three Phase DC Inverter (MFDC)Learn More

Y Rod Welding & Strength Testing

Automated Welding Machines

Complete welding line for reciprocating compressors.
Customized automatic welding machine with advanced productivity and accuracy.
Three phase DC inverter model are highly recommended to weld components such as leg, mounting and terminal.

Specification

DCPS-75-Y-AUT
