Products

Resistance Spot Welder, Projection Welder, Seam Welder, Flash Butt
Welders, Three Phase Welders and Capacitor Discharge Welders

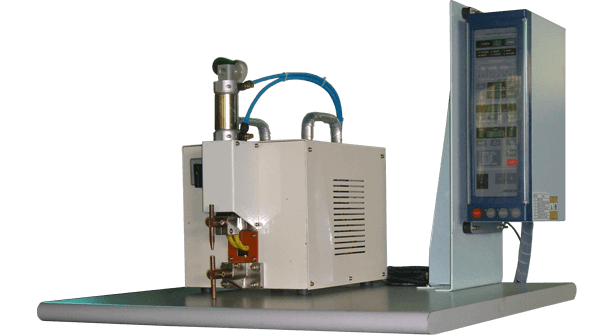

Bench Type Spot Welder

Bench type spot welders are widely used for welding thin sheets and small items such as electrical connectors, contacts or terminals.

DSK-5~15-SP

SINGLE PHASE AC

Mini Spot Welder

Suitable for welding Light bulb cable or 0.8mm thickness or below sheet metals

Specification

Compare

Specification

Model	DSK-5-SP	DSK-10-SP	DSK-15-SP
Rated Capacity	5kVA	10kVA	15kVA
Input Voltage	220V/380V/440V AC
Input Phase	Single Phase
Power Converstion	AC
Max. Shortcircuit Current	3000A	5000A	7500A
Max duty cycle	6%
Weld Force	40kg	100kg	150kg
Cooling Water	Air

DSK-5-SP

DSK-10-SP

DSK-15-SP

Inquire

Added to cart

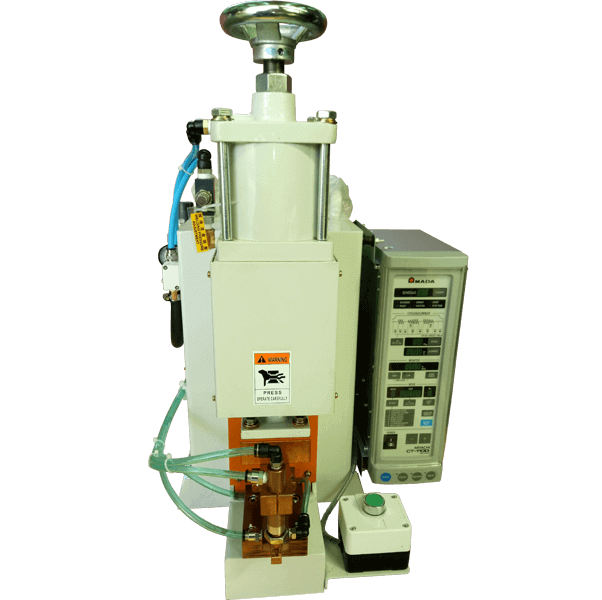

DSK-10~30-SP

SINGLE PHASE AC

Bench Type Spot Welder

Suitable to weld cables, connectors, sheet metal less than 2.5mm thickness

Specification

Compare

Specification

Model	DSK-10-SP	DSK-20-SP	DSK-30-SP
Rated Capacity	10kVA	20kVA	30kVA
Input Voltage	220V/380V/440V AC
Input Phase	Single Phase
Power Converstion	AC
Max. Shortcircuit Current	12000A	15000A	17500A
Max duty cycle	6%
Weld Force	100kg	200kg	250kg
Cooling Water	3L/Min	5L/Min	6L/Min

DSK-10-SP

DSK-20-SP

DSK-30-SP

Inquire

Added to cart

DSK-50-PJ-WH

DSK-75-PJ-WH

Utilize resistance to heat up or to forge the metal partLearn More

Single Phase ACLearn More

Capacitor Discharging DC PowerLearn More

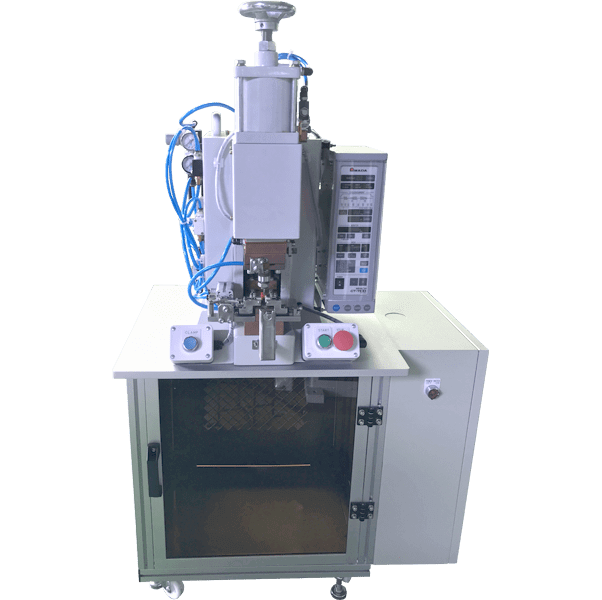

Wire Harness

Fusion Welder

This machine heats up and joins wires without filler material
The fusion-welded wires could be either round or rectangular shaped

Specification

DSK-50-PJ-WH

DSK-75-PJ-WH

Inquire

Added to cart

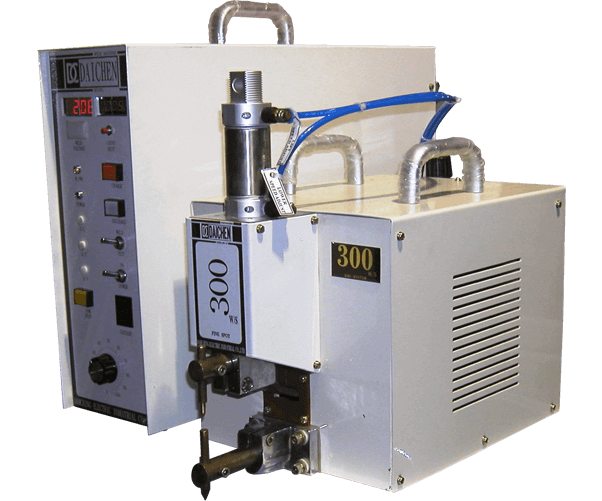

Capacitive Discharge Spot Welder - Bench Type

DSC-150W~500W-SP

Capacitor Discharge DC

Bench Type Spot Welder

High efficiency capacitive discharge spot welder
A machine suitable for welding nonferrous material

Specification

Compare

Specification

Model	DSK-150W-SP	DSK-300W-SP	DSK-500W-SP
Rated Capacity	150W	300W	500W
Input Voltage	220V/380V/440V AC
Input Phase	Single Phase
Power Converstion	DC
Max. Shortcircuit Current	150W/S	300W/S	500W/S
Max duty cycle	6%
Weld Force	40kg	300kg	150kg
Cooling Water	Air	Air	Air

DSC-150W-SP

DSC-300W-SP

DSC-500W-SP

Inquire

Added to cart
